参赛公司：Keysight Technologies
参赛类别：ICT 检查测试－ICT
获奖名称：远见奖 - Vision Award

E9905EL 2 模块在线测试系统，I307x系列 5
E9905EL 2-Module In-Circuit Test System, I307x series 5

Keysight E9905EL I307x系列5测试系统的体积进一步缩小, 使用尺寸更小的测试台和新型模块化电源以迎合当今大部分主流电子制造商的在线测试需求。

它保持了良好的可移植性、可靠性和稳定性（TRS），能够按照当今元器件的要求执行低电压测试。其设计架构提供了更多的灵活性, 以支持用户添加、控制和连接外部电子设备或仪器。

现在，您可以通过测试仪向被测单元送入10A的电流。电源可以多路复用，一个电源最多能够同时为同一联板内6个不同的电路板供电。每个供电通道都是由继电器来控制，以保护被测单元的安全。

它还包括一个模拟激励和测量单元（ASRU），可以将模拟测试速度提升20%，从而提高测试吞吐量。

这款测试系统提供了可靠、灵活且功能齐全的测试能力。通过在自动化生产线中引入该系统，制造商们可以重复利用现有的夹具和相关投资，而不需要因为生产空间的限制而改换平台。

此外，该测试系统还包含最新版本软件9.10p，该软件可在基于Windows的操作环境中提供更快、更简化、更高效的调试流程。（SMTC@ACT）

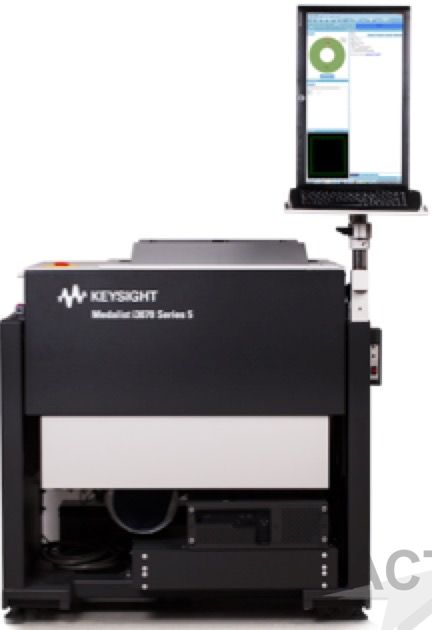

The Keysight E9905EL I307x Series 5 test system is designed in an innovative, smaller than ever footprint to meet the needs of most mainstream electronics manufacturers with in-circuit test requirements in a reduced size testhead while maintaining the same hardware capabilities. It also includes a new modular DUT power supply.

The transportability, Reliability and Stability (TRS) is maintained including the capability to test at low voltages that are required with today’s components and safety measures. This includes an infrastructure with more flexibility in the addition, control and connection of external electronics or instruments.

It is now possible to pump 10 A into the unit under test through the tester. The power supply can be multiplexed so that one power supply can power up to 6 different boards in a panel. Each power channel is controlled by a relay so that the unit under test is protected.

It includes an Analog Stimulus and Measurement Unit (ASRU) that can boost analog test speeds by 20%, thus increasing test efficiency and throughput of the units under test.

Fitting a trusted and flexible test system with just enough tests into an automated production line, manufacturers can also reuse their existing fixtures and reduce their cost of investment without changing platform due to space constraint on their production floor.

The test system includes the latest software 9.10p, which feature faster, more streamlined, and efficient debugging workflow in a window-based operating environment.

图解：左二 Sam Wong，Business Development Director
右二 Tan See-Kai，Business Development Manager for Greater China
两位先生代表上台领奖留念。图片来源：SMT China
